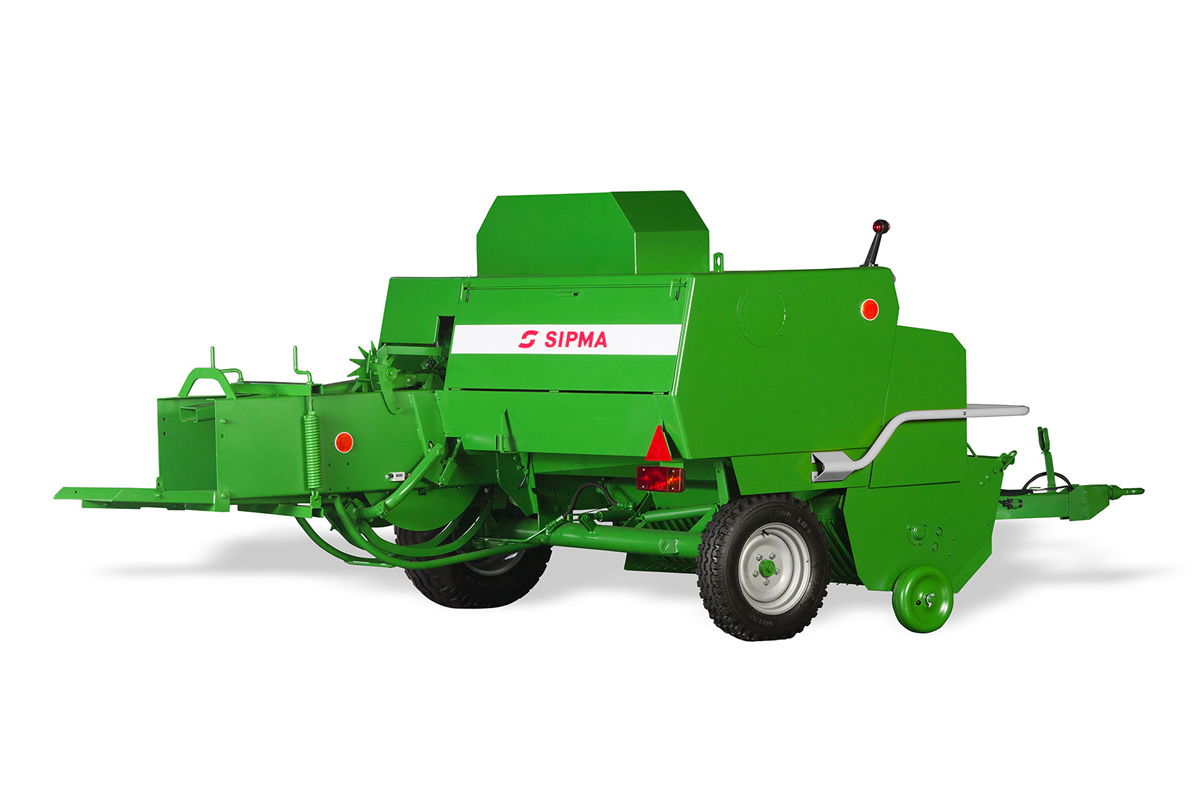

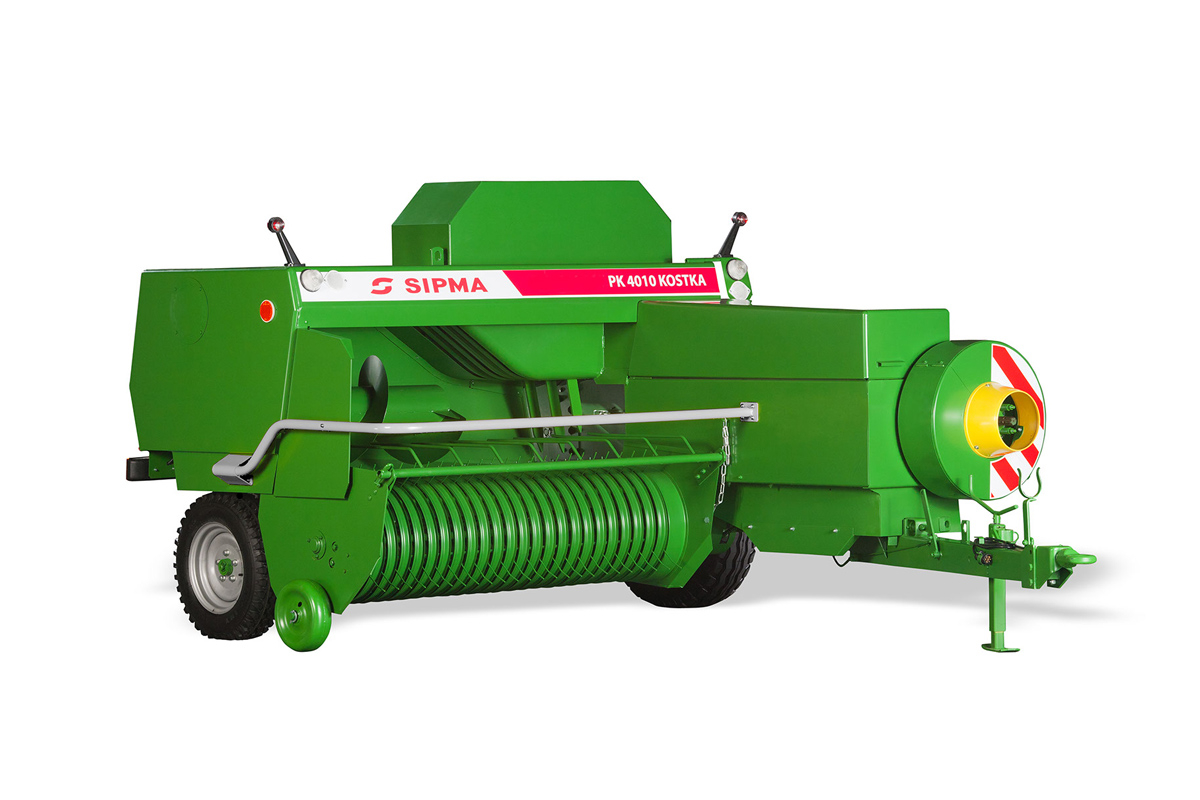

Cube baler - SIPMA PK 4010 KOSTKA
SIPMA PK 4010 KOSTKA cube baler is excellent straw collecting machine, also effective in collection of hay. The optimum design, excellent operating parameters, as well as high durability and reliability are the reasons why SIPMA S.A. has been manufacturing these machines for more than 30 years, continiously improving them. Almost 100,000 machines were sold to farmers so far.
SIPMA PK 4010 KOSTKA cube baler is excellent straw collecting machine, also effective in collection of hay. The optimum design, excellent operating parameters, as well as high durability and reliability are the reasons why SIPMA S.A. has been manufacturing these machines for more than 30 years, continiously improving them. Almost 100,000 machines were sold to farmers so far.
- Pressing chamber design allows adjusting the pressure force (up to 180 kg/m³), setting the cube length from 0.3 to 1.3 m and adjusting the plane of the ejected cube.
- Balanced crank and piston system improves the working conditions for the operator by eliminating the harmful effect of vibrations affecting the tractor.
- Hydraulic pickup lifting system increases the safety and comfort of operation.
- Double binding device quickly and accurately binds bales formed by the square baler.
- Machine protection devices ensure long-lasting and safe operation. The one-way friction clutch at the flywheel (900 Nm) protects the drive shaft. Behind the flywheel is the main automatic clutch, which protects the whole machine (with six disc springs). The shear bolts protect the needles and binding apparatuses. In addition, the reel and harvester are equipped with overload clutches.
- Electrical installation enables driving the machine on public roads without additional costs.
- Bale chute (additional equipment) ensures transport of bales directly to trailers towed behind the baler, thus significantly reducing the labour consumption and increasing harvest effectiveness. Moreover, use of the slide increases the pressure ratio.
- Wire binding knotter (additional equipment) mounted on special order.
- Wire container in version with a wire binding knotter, ensures smooth delivery of the wire to the binding apparatus.
- Electronic counter (additional equipment) allows to control the number of made bales.
- Hydraulically adjustable drawbar improves the comfort of work and shortens the time of moving the machine from transport to working position and back.
- Knotter fan (additional equipment) prevents the accumulation of fine material in the area of the binding apparatuses, eliminating its influence on the binding efficiency.
- Feeler wheel of the pickup with tyre (additional equipment) increase comfort of pickup work and improves the copying efficiency, especially in wetlands.
| Model | PK 4010 KOSTKA | |
|---|---|---|
| Pick-up width | mm | 1800 |
| Bale chamber width | mm | 460 |
| Bale chamber height | mm | 400 |
| Bale length - smooth adjustment | mm | 300 - 1300 |
| Pressure level | kg/m3 | ≤ 180 |
| Pick-up lifting | hydraulic | |
| Drawbar setting | mechanical | |
| PTO rotational speed | rpm | 540 |
| Power demand | kW (HP) | 28.5 (38) |
| Recommended parameters of binding twine | ||
| nominal linear mass of sisal twine | tex | 4500 - 6700 |
| nominal linear mass of propylene twine | m/kg | 300 - 400 |
| Equipment | ||
| PTO shaft | ● | |
| bale chute | ○ | |
| wire binding knotter | ○ | |
| electronic counter | ○ | |
| Dimensions | ||
| length | mm | 4900 |
| width | mm | 2500 |
| height | mm | 1600 |
| Weight | kg | 1560 |
