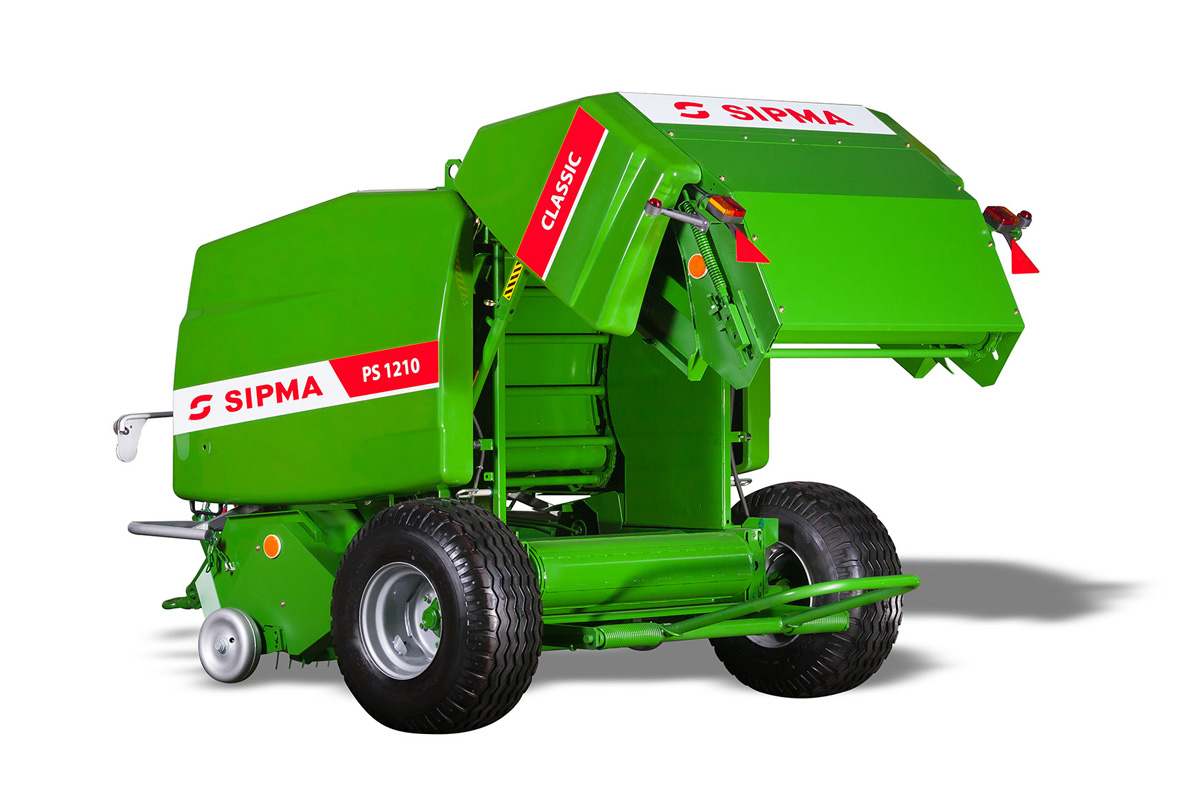

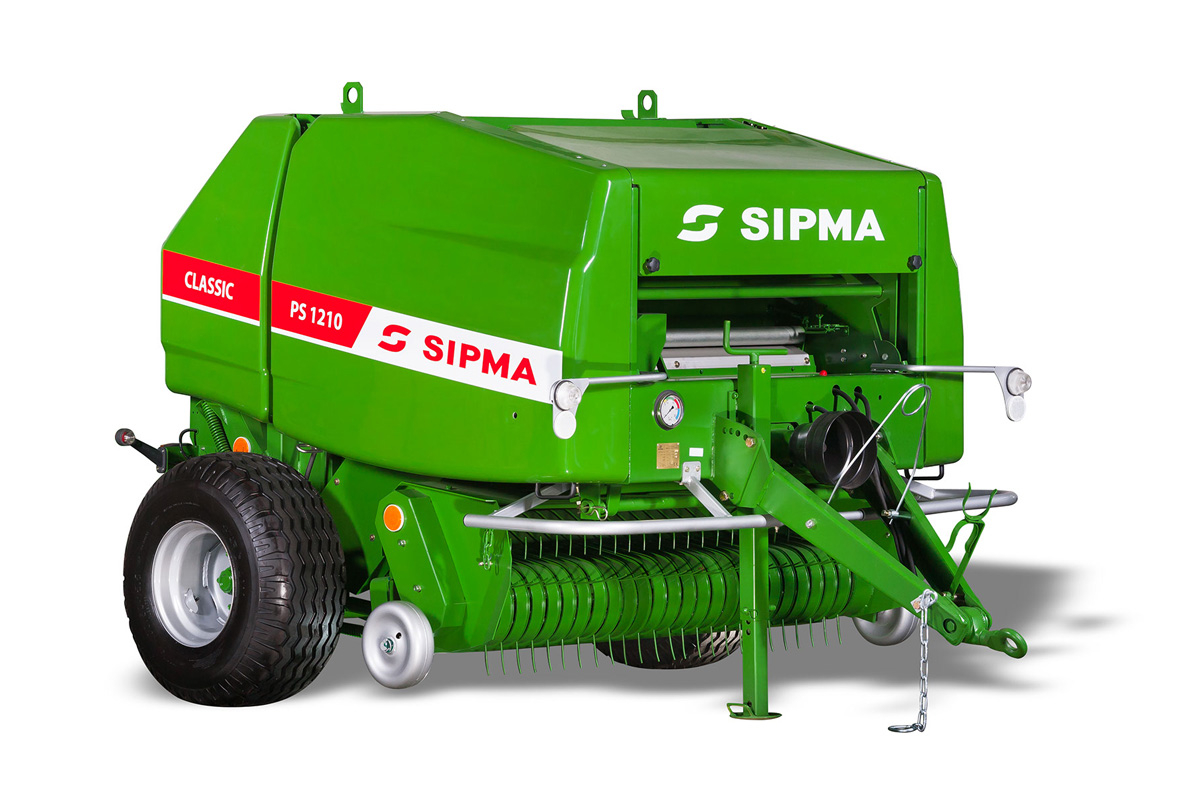

Fixed chamber round baler - SIPMA PS 1210 CLASSIC
The SIPMA PS 1210 CLASSIC is the basic model in the SIPMA range of balers. It is characterized by ease of operation and use, while ensuring long and reliable performance.
The SIPMA PS 1210 CLASSIC is the basic model in the SIPMA range of balers. It is characterized by ease of operation and use, while ensuring long and reliable performance.
- Chain type baling chamber with a hydraulic lock ensures an optimum bale mass for hay, straw and the green fodder for hay silage.
- Wide range of additional equipment allows to customize the machine to own needs.
- Press covers made from laminate protects mobile elements of the machine and make it look dynamic and modern.
- Electronic control (additional equipment) supervises the proper operation of the machine and monitors the process of material collecting and bale forming.
- Functions of the electronic controller:
- visualization of the currently performed operation;
- supervision over the bale forming process;
- diagnostics of sensors and electro-coupling;
- counting the number of wrapped bales and working time. - Coupling device (additional equipment) enables connecting it with bale wrappers SIPMA OS 7531 MAJA or SIPMA OS 7650 GAJA, thanks to this feature we obtain a bale wrapped in foil in one pass, while saving time and money.
| Model | PS 1210 CLASSIC | |
|---|---|---|
| Pick-up width | mm | 2000 |
| Chamber type | chain | |
| Baling chamber dimension | ||
| width | mm | 1200 |
| diameter | mm | 1200 |
| Chamber lock | hydraulic | |
| Feeler wheels | steel | |
| PTO rotation speed | rpm | 540 |
| Power demand | kW (HP) | 40 (55) |
| Equipment | ||
| PTO shaft | ● | |
| wide angle PTO shaft | ○ | |
| pressing roller | ✖ | |
| twine binder | ● | |
| net binder | ○ | |
| electronic control | ○ | |
| automatic chain lubrication | ○ | |
| grouped bearing lubrication points | ● | |
| automatic bearing lubrication | ✖ | |
| coupling device | ○ | |
| wide tyres 400 / 60 - 15,5 | ○ | |
| wide tyres 500 / 50 - 17 | ✖ | |
| swivel hitch eye (diameter = 50mm) | ● | |
| swivel hitch eye (diameter = 40mm) | ○ | |
| ball hitch K80 | ○ | |
| Dimensions | ||
| length | mm | 3300 |
| width | mm | 2400 |
| height | mm | 2200 |
| Weight | kg | 2010 |
● - standard ○ - additional equipment ✖ - unavailable
